Trimless Front-Lit Channel Letters, No Trim Cap, 304 Stainless

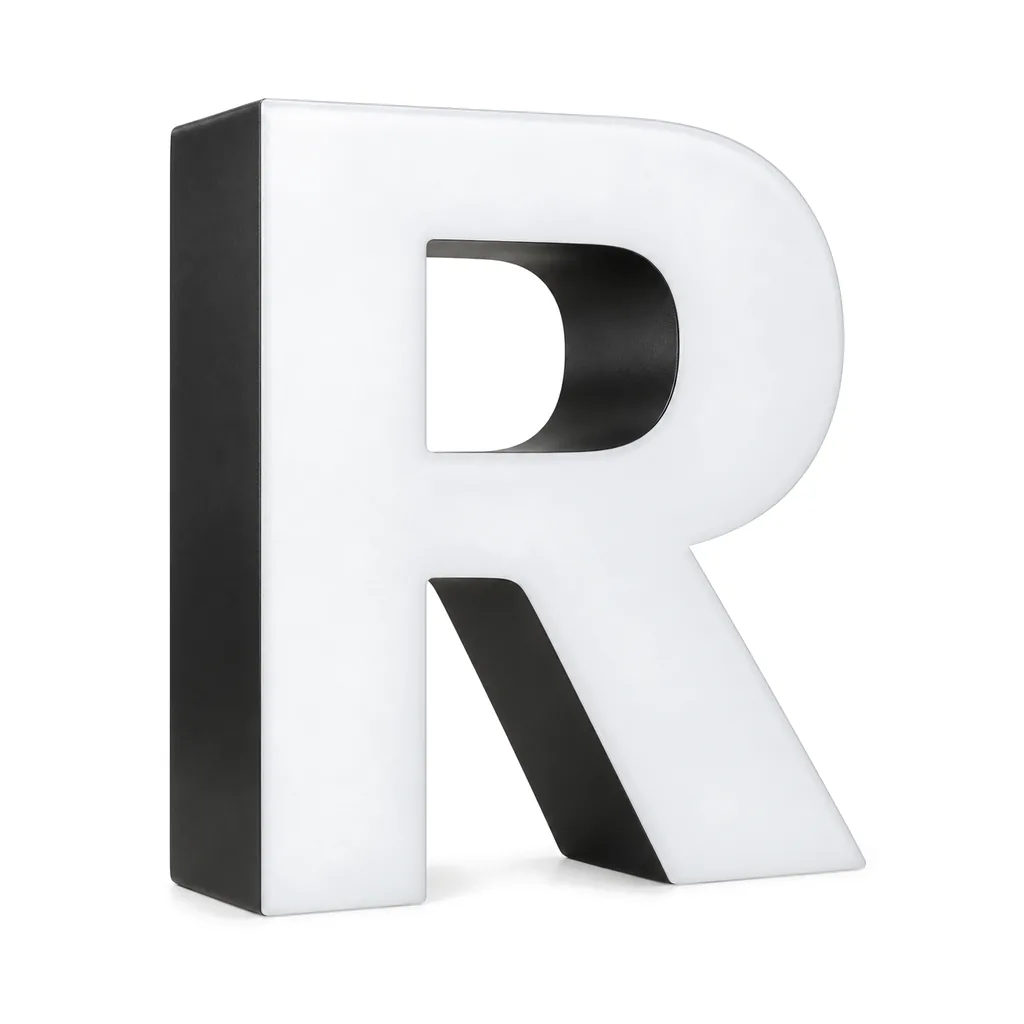

Trimless front-lit letters, also called no-trim or trimcap-free channel letters, light up the same way as our standard front-lit (face-lit) channel letters, but without the plastic trim cap around the face. The acrylic face sits on the front edge of the 304 stainless steel return, so from the front you see only the lit face: no rim and no outline in a second color.

The difference is small on paper and obvious on the wall. A trim cap is 1 in wide and laps about 1/4 in onto the face. On bold block letters read from across a parking lot, nobody notices it. On a stroke 1 in wide, a cap on both sides covers half of the lit face, and thin serifs, scripts and lowercase logos lose their detail. Trimless keeps each letter as drawn, which is why small letters with strokes under about 1 in are usually built this way.

There is also no plastic at the edge to age. After years of strong sun a trim cap can fade, loosen or turn wavy; a trimless letter has no cap to wear.

Small trimless letters can be as shallow as 3/4 in deep, which suits interior walls, reception areas and boutique fronts where a deep letter would look heavy. Larger letters get deeper returns; the depth is set on your drawing.

Behind the face, everything matches our trim cap letters:

• 304 stainless steel returns, painted black, white or your color, or left brushed.
• White translucent acrylic face, or colored acrylic or vinyl for brand colors.
• 12 V LED modules in white 6500 K, neutral 4000 K or warm white 3000 K.
• Indoor plug-in adapter, or IP65 modules and a hard-wired outdoor power supply outside.
• Flush mounting with a full-size paper template and hardware; raceway, photocell and timer as options.
• Sizes: 4 in to 60 in tall in the price estimator.

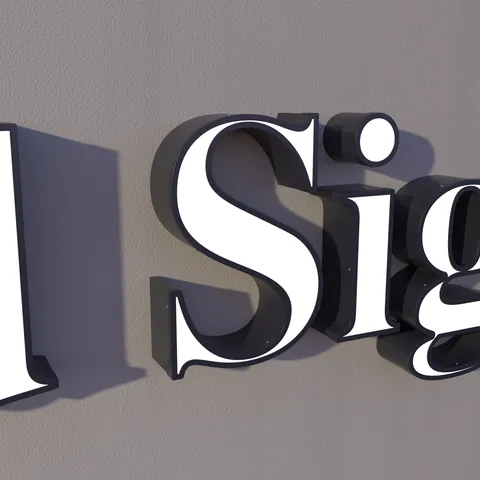

By day the letters show a clean face with a slim band of return color at the sides. At night only the faces glow, with sharp edges and nothing around them.

Trimless costs a little more than trim cap; the price estimator on this page shows the difference. Send your logo or text and the wall size, and we email a free drawing with a lit preview and the exact price before anything is built. The power supply and LED modules are UL / cUL listed components. Installation, permits and the electrician are not included.

Look at the thinnest stroke in your logo at the size you want. If it is under about 1 in, trimless is usually the only way to keep the shape. Above that, both styles work and it comes down to the look: bold block letters read the same either way, and trim cap costs a little less.

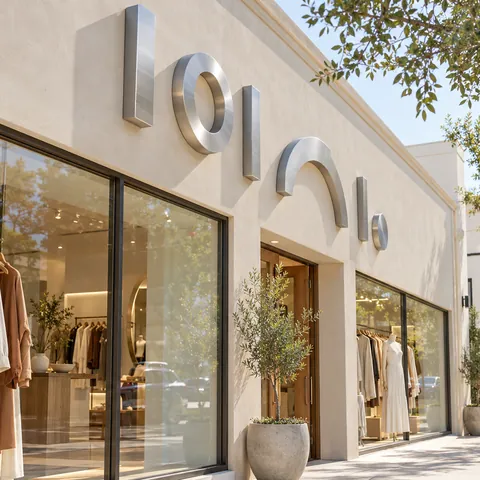

Where people stand close, indoors or on a boutique front, the clean edge of a trimless face is easier to appreciate. Choose the return finish for the wall: black or brushed returns show as a crisp edge from the side, while returns painted to match the wall almost disappear. If your logo has a deep blue or green, check it in the lit preview, since dark colors glow less.

Send your logo file, the wall size and a photo of the wall. The drawing shows the letters at real size with their depth and lit preview.
